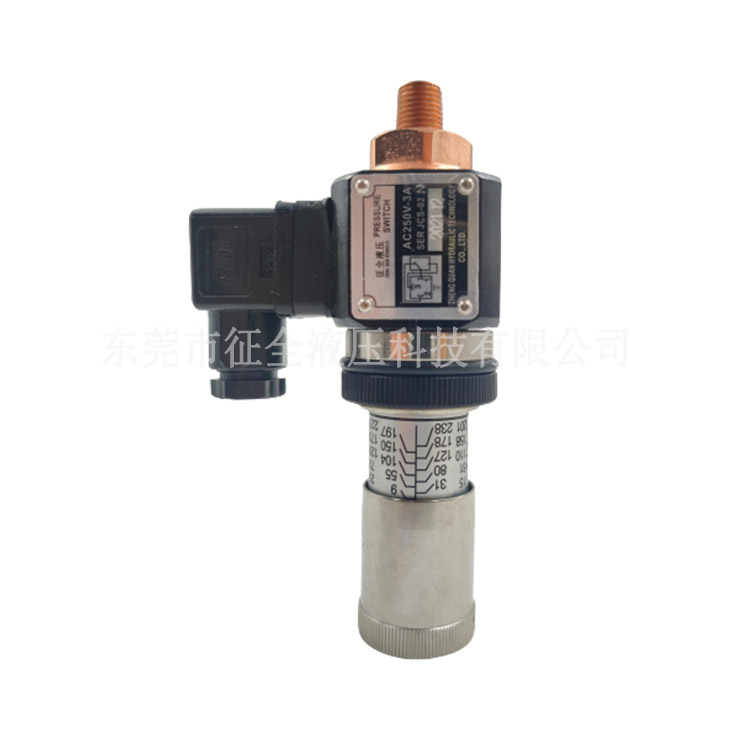

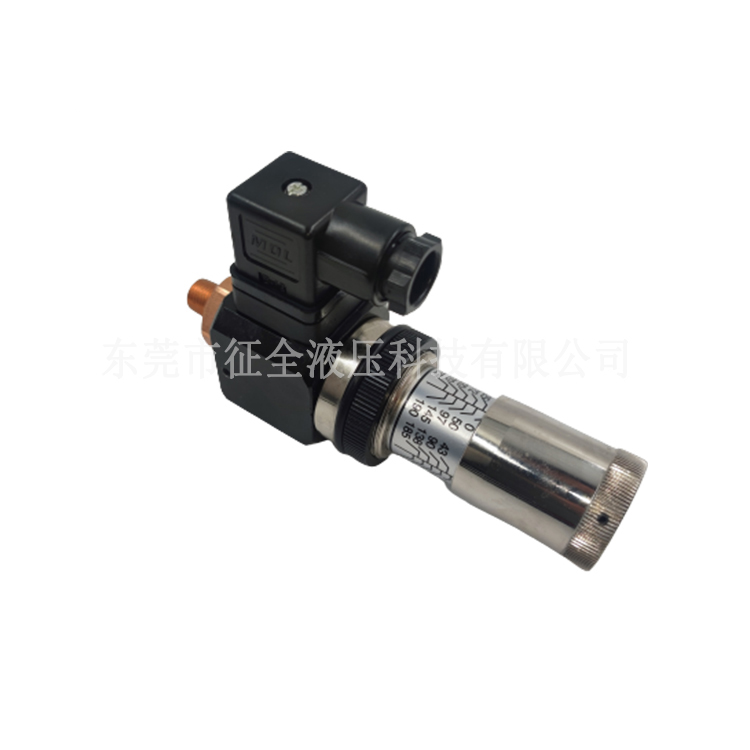

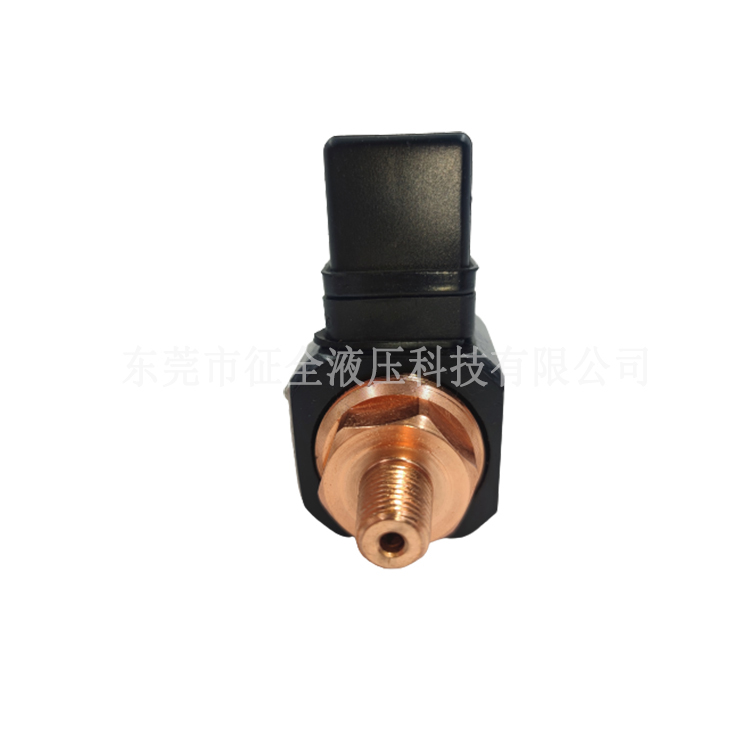

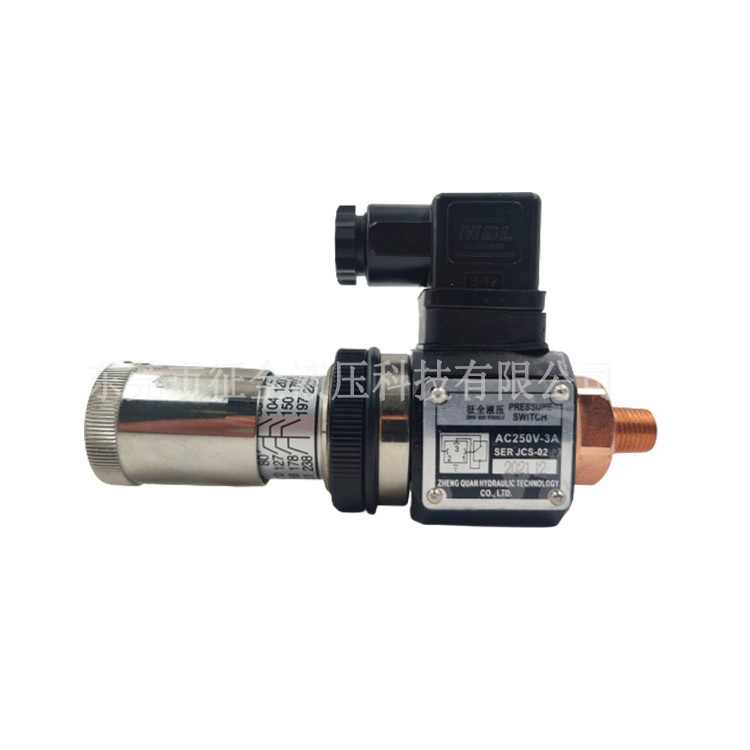

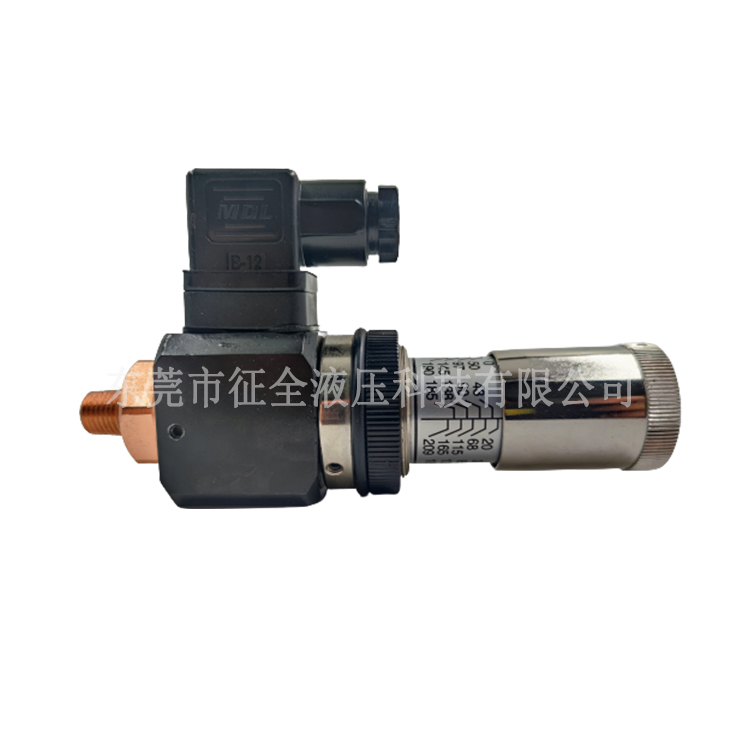

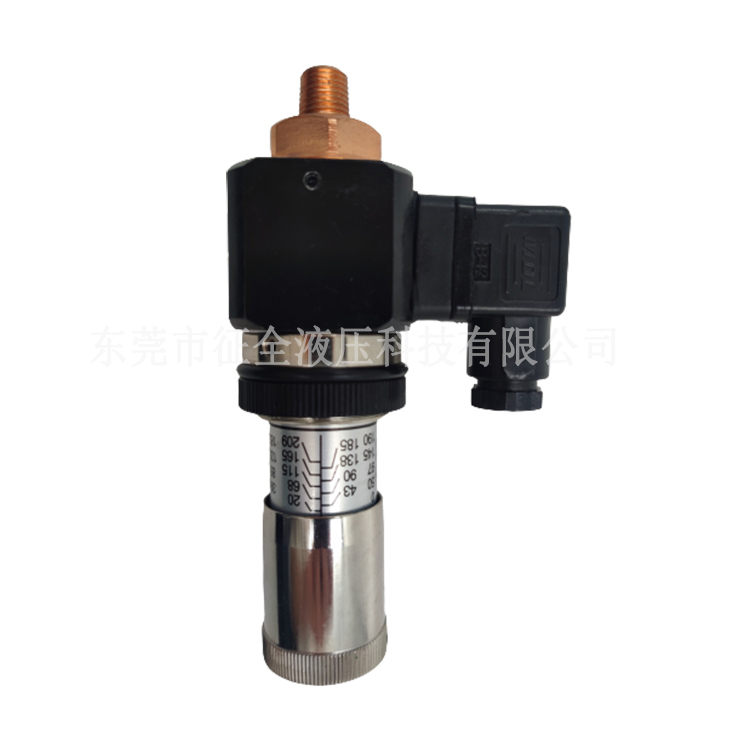

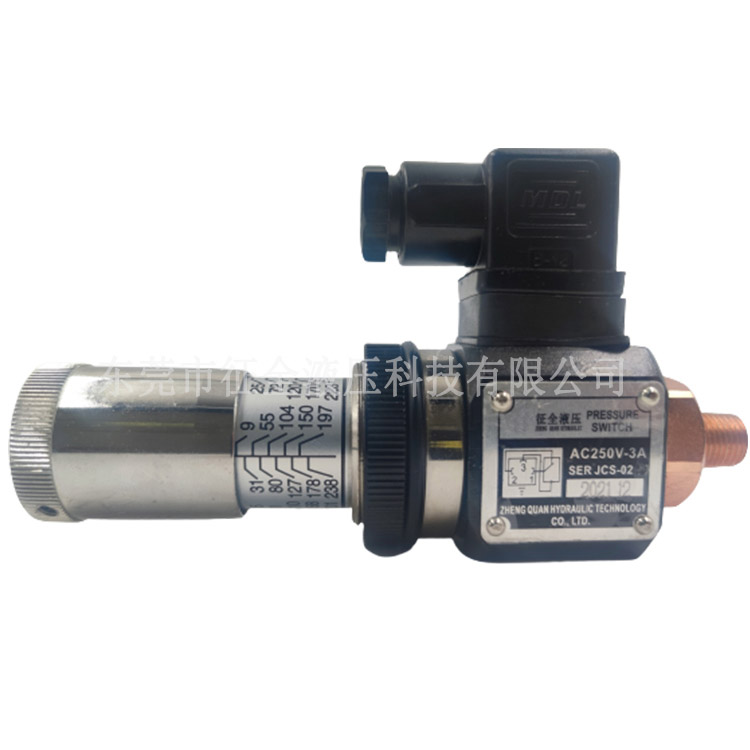

JCS-02N external tooth pressure relay

Working principle: switch control valve

Item No.: JCS-02N External Teeth

Purpose: pressure control valve

Model: JCS-02N External teeth

Number of stages: double stage

Material: cast copper

Scope of application: hydraulic system

Applicable media: hydraulic oil

Applicable temperature: 60 (℃)

Nominal pressure: 42 (MPa)

Nominal diameter: 1/4 (mm)

Installation form: pipe type

Rated current: 3A

Rated flow: 210kg

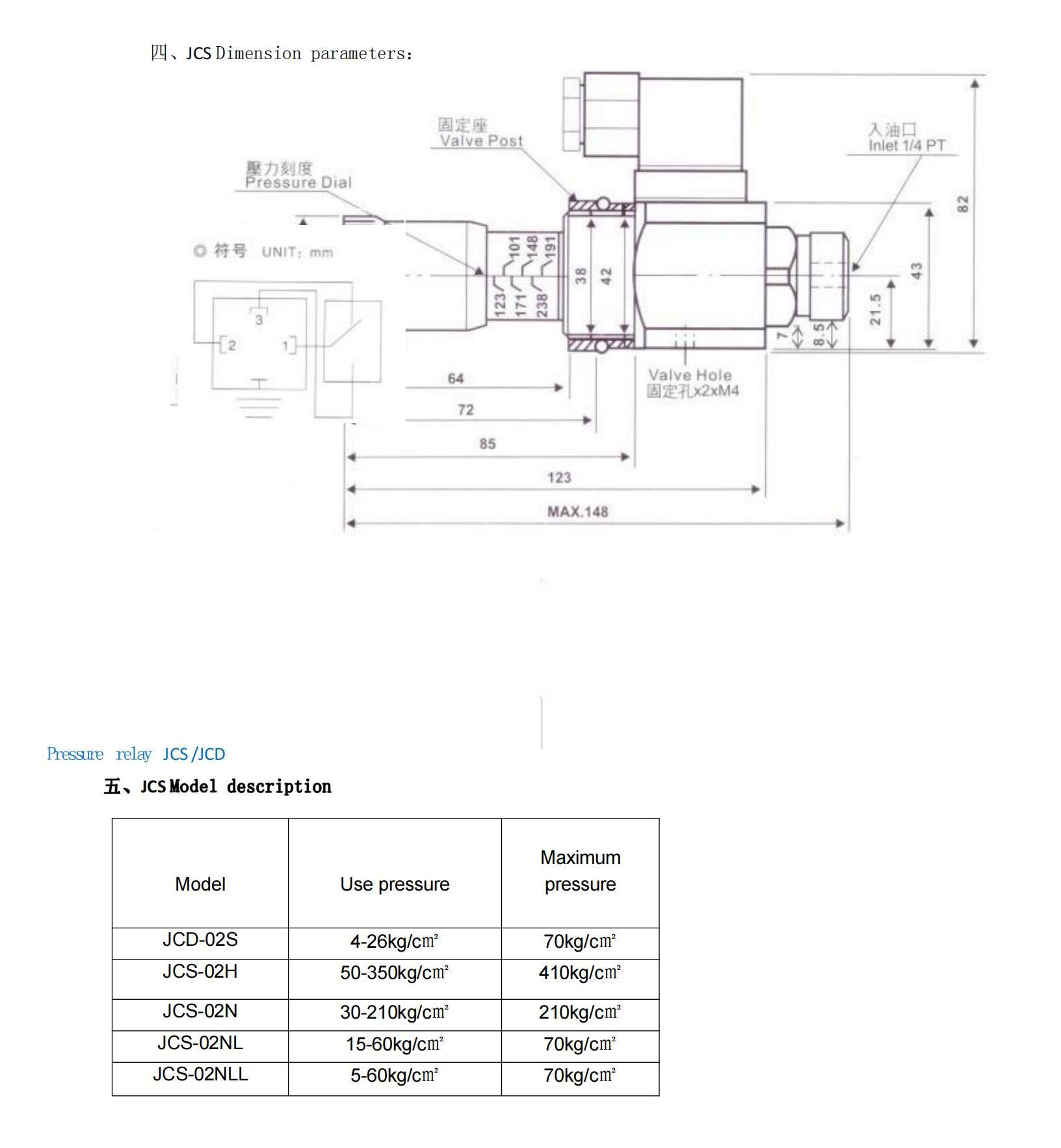

Specifications: JCS-02N external teeth, JCS-02NL external teeth, JCS-02NLL external teeth, JCS-02H external teeth
