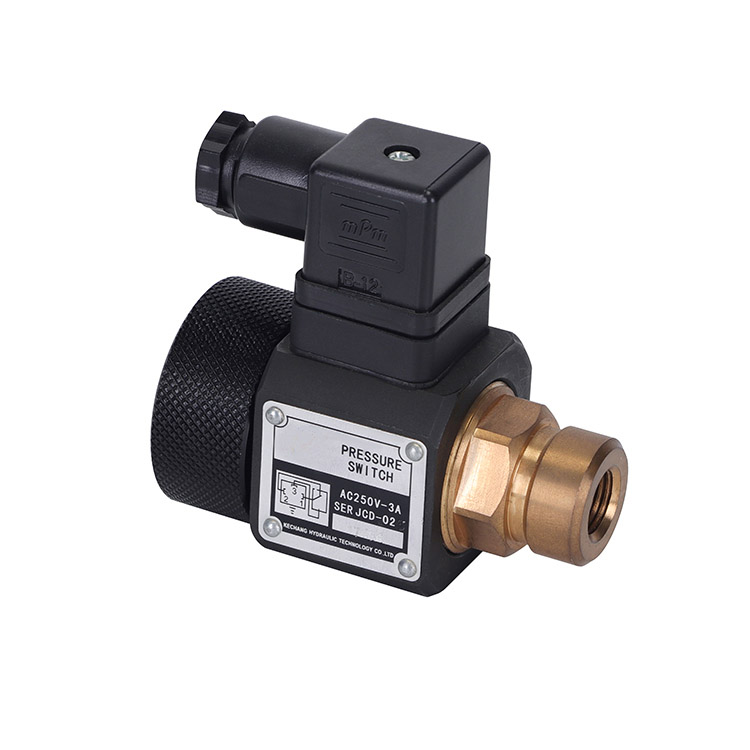

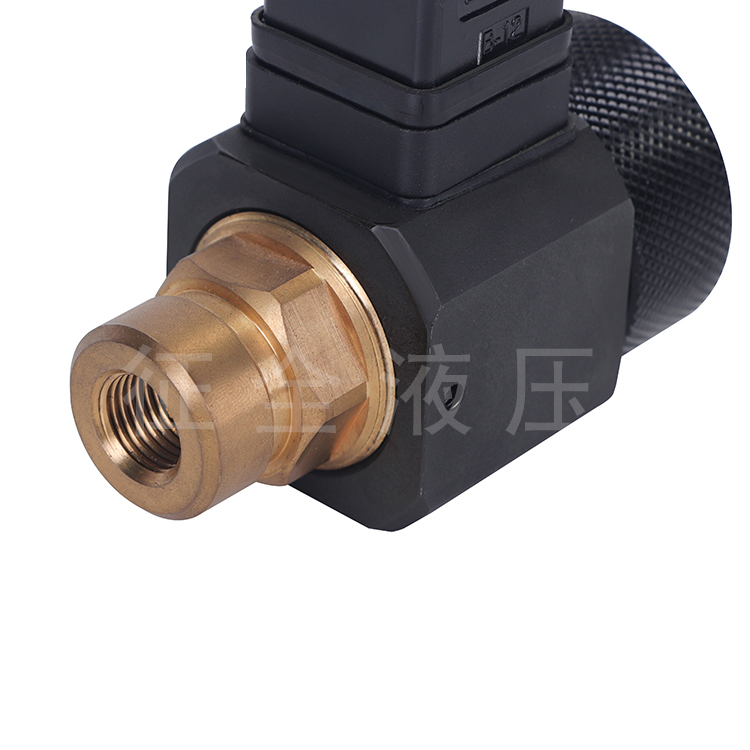

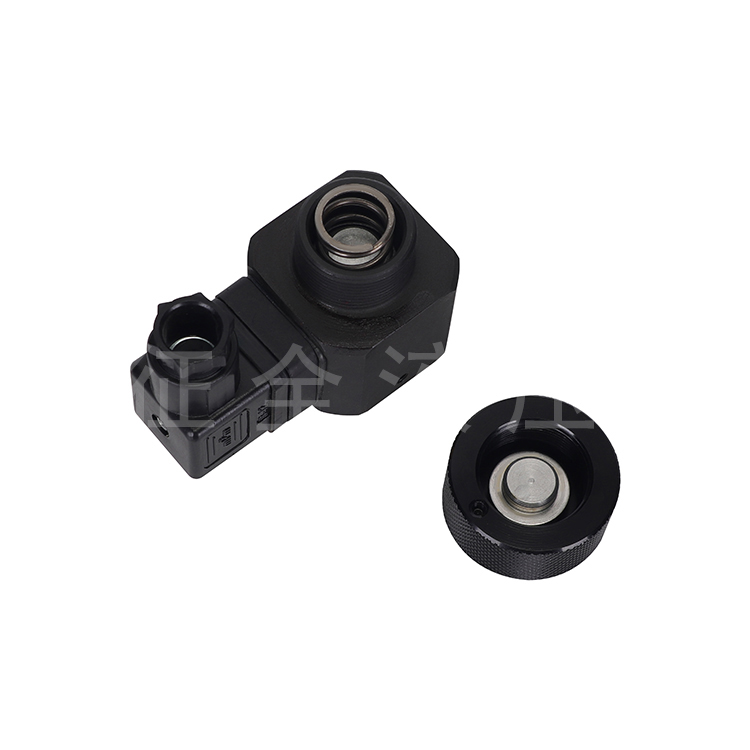

Zhengquan JCD-02S low pressure relay

Working principle: switch control valve

Item number: JCD-02S

Purpose: pressure control valve

Model: JCD-02S

Number of levels: single level

Material: Brass

Scope of application: hydraulic system

Applicable media: hydraulic oil

Applicable temperature: 60 (℃)

Nominal pressure: 0.4-2.6 (MPa)

Nominal diameter: 1/4 (mm)

Installation form: pipe type

Rated current: Ask customer service
